Factory Promotional Precision Cnc - Molybdenum Wire – De-Shin Detail:

Ningbo De-Shin offers a full range of China best quality molybdenum wire at fixed length or random length for different industrial application fields. It’s applicable to cut all types of die steel, carbide, non-ferrous metals, precision cutting of magnetic materials. The finished products are packed with vacuum package so as to prevent oxidation of molybdenum wire and can be stored for a long time.

Properties and Characteristics:

1. High tensile strength and low elongation.

2. High melting point, low density and thermal coefficients.

3. long service life.

4. High cutting speed and Long stable time of processing.

Applications:

1. Wire-electrode cutting.

2. Electric light source, electrode.

3. Heating elements, high-temperature components.

4. Spraying for auto parts.

Stock size:

0.18mm: 2000m/spool(30 spools per carton).

0.20mm: 1600m/spool(30 spools per carton).

regular size (mm)	standard tolerance （mm)	tensile strength		elongation (%)	standard spooling (m)
regular size (mm)	standard tolerance （mm)	N/mm2	gf/mg	elongation (%)	standard spooling (m)
0.08	±0.002	≥2340	≥115	≤2	3500
0.10	±0.002	≥2340	≥115	≤2	3400
0.12	±0.002	≥2240	≥110	≤2	3200
0.14	±0.003	≥2240	≥110	≤2	3000
0.16	±0.003	≥2040	≥100	≤2	2500
0.18	±0.003	≥1830	≥100	≤2	2000
0.20	±0.004	≥1830	≥90	≤2	1600

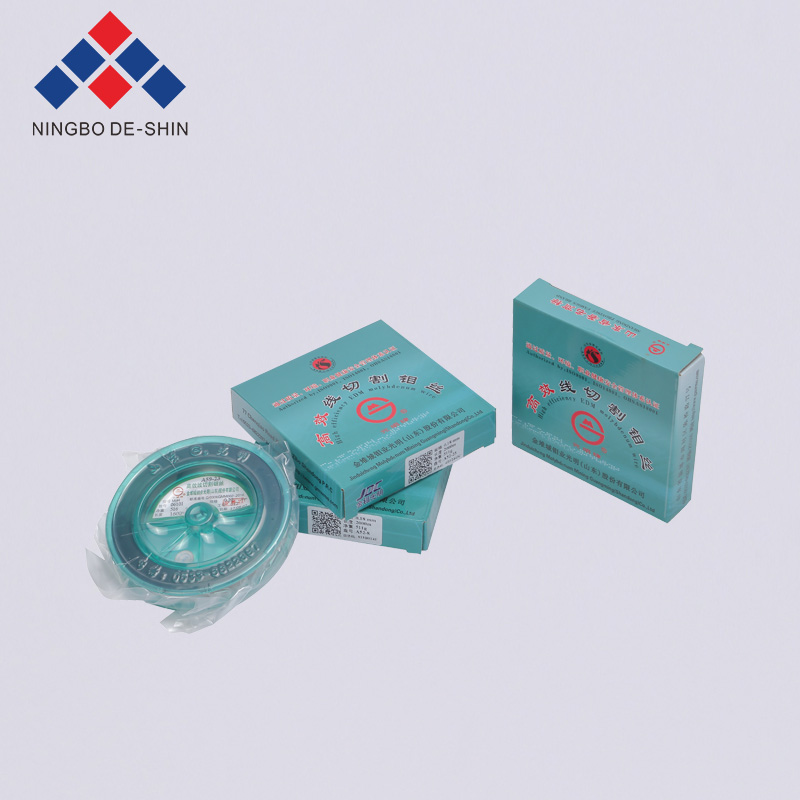

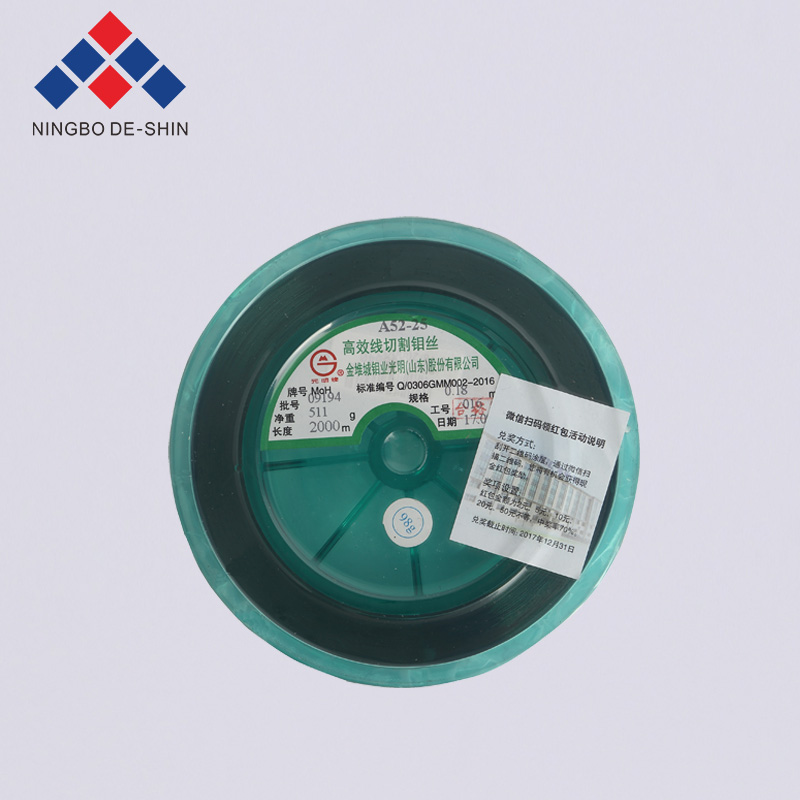

Product detail pictures:
